Girona-Generalitat seismic station (CGIS)
Code: CA.CGIS Name: Girona-Generalitat Latitude: 41.9808 N Longitude: 2.8215 E Height: 70 m Local depth: 0 m Owner: Institut Cartogràfic i Geològic de Catalunya |
| Soil features | ||||
|---|---|---|---|---|
| Lithology | Period | Vs30 (m/s) | Classe EC8 | F0 (Hz) |
| Shales and gravels | Quaternary | - | - | - |
| Instrumentation by channels and periods | ||||
|---|---|---|---|---|
| Channels | Start date | Sensor type | Digitizer type | Instrumental response |
| HNZ, HNN, HNE | 21/02/2011 | Accelerometer | 24 bits | [StationXML] |
Geophysical characterisation
H/V Spectral ratio from seismic noise

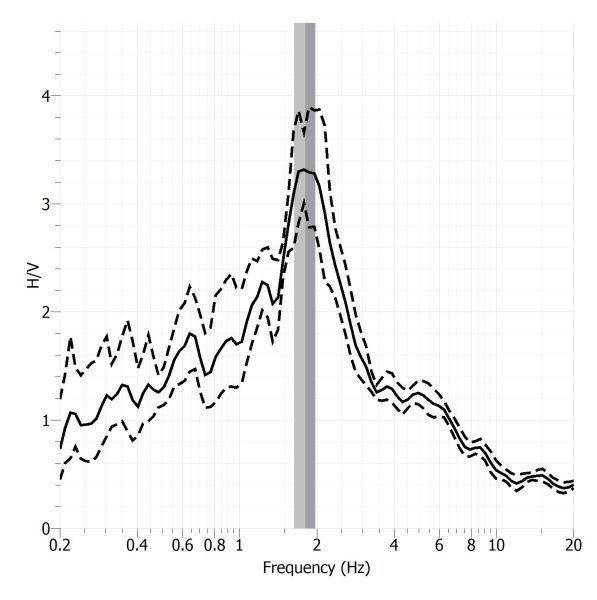

H/V spectral quotient of the seismic noise record at the Girona – Generalitat seismic station. A peak is observed around 1.8 Hz that can be related to the fundamental frequency of the soil and, therefore, an acoustic impedance contrast is expected in the subsoil.
H/V Spectral ratio of seismic noise records from Girona-Generalitat seismic station.
S-waves velocity model

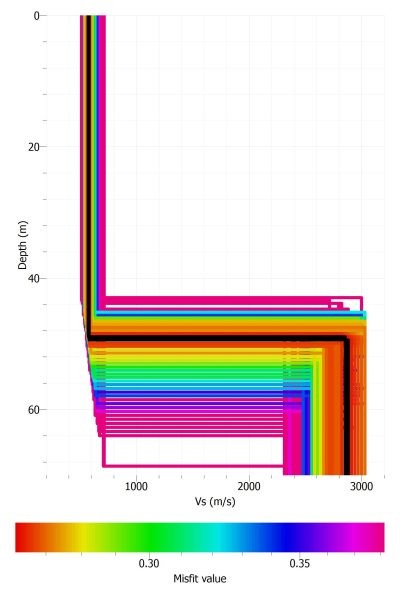

In the shear wave propagation velocity model (Vs) obtained by inverting the dispersion curves (array technique), a surface layer of about 50 meters thick and a velocity of about 570 m/s is observed. Below, a strong increase in velocity is detected, exceeding 2800 m/s. This last layer can be interpreted as the bedrock.
S-waves velocity model of Girona-Generalitat seismic station.
