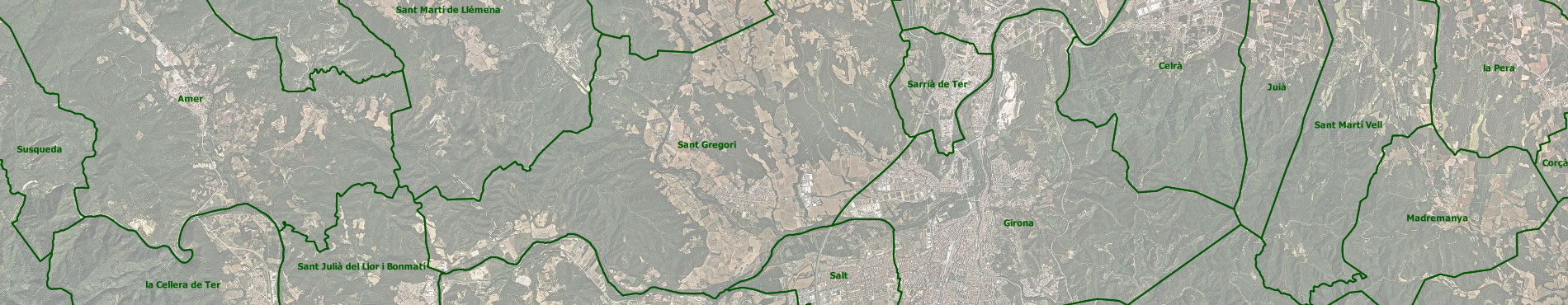

WMS and WFS Administrative divisions
WMS connection URL
https://geoserveis.icgc.cat/servei/catalunya/divisions-administratives/wms
WFS connection URL
https://geoserveis.icgc.cat/servei/catalunya/divisions-administratives/wfs
- Data date: 20/01/2026.
- Service update date: May 2026.
New features: addition of Catalonia, provinces and "vegueries" layers.
Available layers
These services are configured to show some layers or others (municipalities, districts, etc.), with more or less resolution, depending on the zoom level. Alternatively, each layer and layer group could be called separately, but as they are subject to display ranges, the default option is recommended. The layers that make up this service are listed below:
| Layer | Layer name | Display range |
|---|---|---|
| Catalonia (layer group) | ||
| Catalonia at 1:1.000.000 | divisions_administratives_catalunya_1000000 | From 1:750.000 |
| Catalonia at 1:500.000 | divisions_administratives_catalunya_500000 | 1:375.000 - 1:750.000 |
| Catalonia at 1:250.000 | divisions_administratives_catalunya_250000 | 1:175.000 - 1:375.000 |
| Catalonia at 1:100.000 | divisions_administratives_catalunya_100000 | 1:75.000 - 1:175.000 |
| Catalonia at 1:50.000 | divisions_administratives_catalunya_50000 | 1:25.000 - 1:75.000 |
| Catalonia at 1:5.000 | divisions_administratives_catalunya_5000 | Up to 1:25.000 |
| Provinces (layer group) | ||
| Provinces at 1:1.000.000 | divisions_administratives_provincies_1000000 | From 1:750.000 |
| Provinces at 1:500.000 | divisions_administratives_provincies_500000 | 1:375.000 - 1:750.000 |
| Provinces at 1:250.000 | divisions_administratives_provincies_250000 | 1:175.000 - 1:375.000 |
| Provinces at 1:100.000 | divisions_administratives_provincies_100000 | 1:75.000 - 1:175.000 |
| Provinces at 1:50.000 | divisions_administratives_provincies_50000 | 1:25.000 - 1:75.000 |
| Provinces at 1:5.000 | divisions_administratives_provincies_5000 | Up to 1:25.000 |
| "Vegueries" (layer group) | ||
| "Vegueries" at 1:1.000.000 | divisions_administratives_vegueries_1000000 | From 1:750.000 |
| "Vegueries" at 1:500.000 | divisions_administratives_vegueries_500000 | 1:375.000 - 1:750.000 |
| "Vegueries" at 1:250.000 | divisions_administratives_vegueries_250000 | 1:175.000 - 1:375.000 |
| "Vegueries" at 1:100.000 | divisions_administratives_vegueries_100000 | 1:75.000 - 1:175.000 |
| "Vegueries" at 1:50.000 | divisions_administratives_vegueries_50000 | 1:25.000 - 1:75.000 |
| "Vegueries" at 1:5.000 | divisions_administratives_vegueries_5000 | Up to 1:25.000 |
| "Comarques" (layer group) | ||
| "Comarques" at 1:1.000000 | divisions_administratives_comarques_1000000 | From 1:750.000 |
| "Comarques" at 1:500.000 | divisions_administratives_comarques_500000 | 1:375.000 - 1:750.000 |
| "Comarques" at 1:250.000 | divisions_administratives_comarques_250000 | 1:175.000 - 1:375.000 |
| "Comarques" at 1:100.000 | divisions_administratives_comarques_100000 | 1:75.000 - 1:175.000 |
| "Comarques" at 1:50.000 | divisions_administratives_comarques_50000 | 1:25.000 - 1:75.000 |
| "Comarques" at 1:5.000 | divisions_administratives_comarques_5000 | Up to 1:25.000 |
| Municipalities (layer group) | ||
| Municipalities at 1:250.000 | divisions_administratives_municipis_250000 | 1:175.000 - 1:375.000 |
| Municipalities at 1:100.000 | divisions_administratives_municipis_100000 | 1:75.000 - 1:175.000 |
| Municipalities at 1:50.000 | divisions_administratives_municipis_50000 | 1:25.000 - 1:75.000 |
| Municipalities at 1:5.000 | divisions_administratives_municipis_5000 | Up to 1:25.000 |
| Municipal Capitals (layer group) | ||
| Municipality capitals | divisions_administratives_capsdemunicipi_capmunicipi | Up to 1:25.000 |
| District capitals | divisions_administratives_capsdemunicipi_capcomarca | Up to 1:750.000 |
